UZMA 4r HPK

UZMA 4r HPK

Contact us for price

Location:Blackburn, United Kingdom

orCall +44 1706 876316

Description

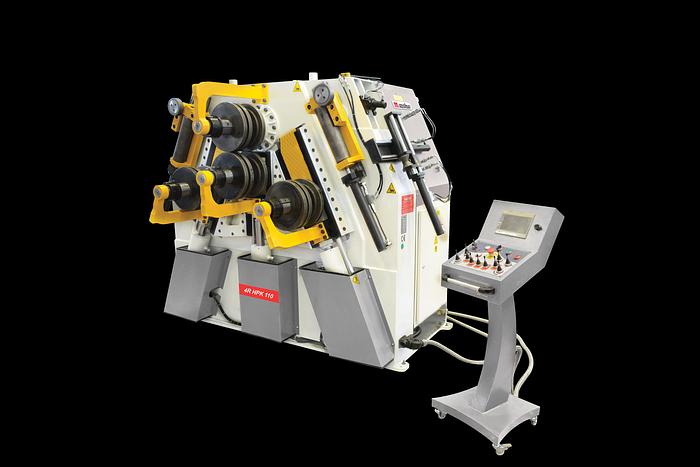

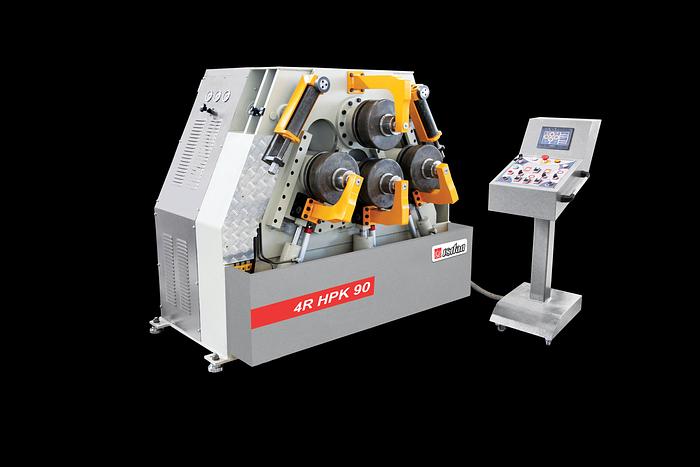

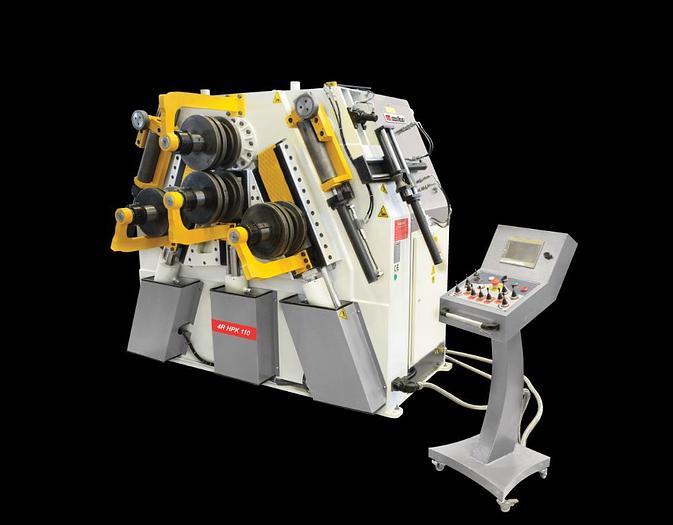

4 Roll Profile and Pipe Bending Series 4R HPK models have been manufactured from 70mm to 110mm shaft sizes. By the Mean of NC Controller high and Acucrate output is enabled and as a result best lesser flat end on profiles such aluminum extrusions save you a lot of costs.

STANDARD FEATURES & SPECIFICATIONS

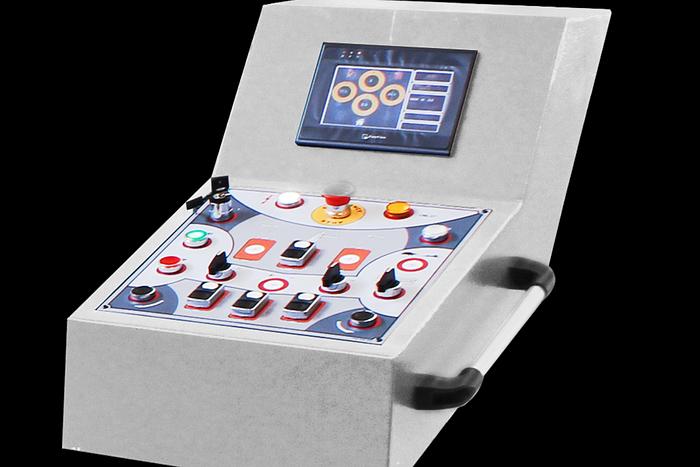

  • Easy operation with mobile control panel with push buttons
  • Welded steel frames
  • Built according to EC Safety Directives and has CE Mark
  • 4 Rolls Machine.
  • On 90 and 110mm Shaft Models 3 Rolls are driven by hydromotor + planetary reducers , on 70mm Shaft Model 2 Rolls are driven
  • Hardened and ground shafts made of high tensile special steel.
  • Standard Rolls (1 Set with 4 Rolls).
  • Rolls are hardened and ground in the hole.
  • Bottom and lateral rolls hydraulik movable up-down.
  • Horizontal and Vertical Working Position.

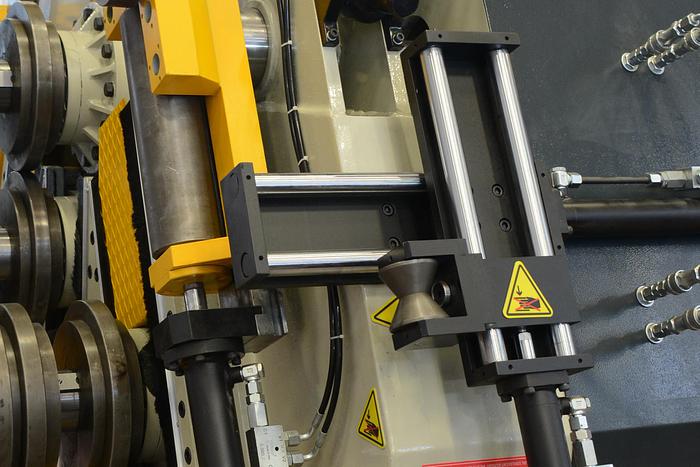

  • On 70mm Shaft model 1+1 axis Guide Rolls ,
  • On 90 and 110mm Shaft models 3+3 axis Guide rolls
  • User’s Manual with EC Certification.

OPTIONAL FEATURES

  • Automation with NC Control
  • Optional Profile-Flat Bar Bending Rolls
  • Special Rolls


Specifications

ManufacturerUZMA
Model4R HPK
ConditionNew
