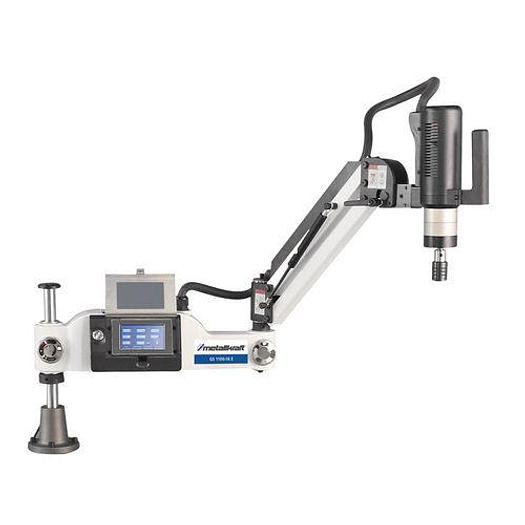

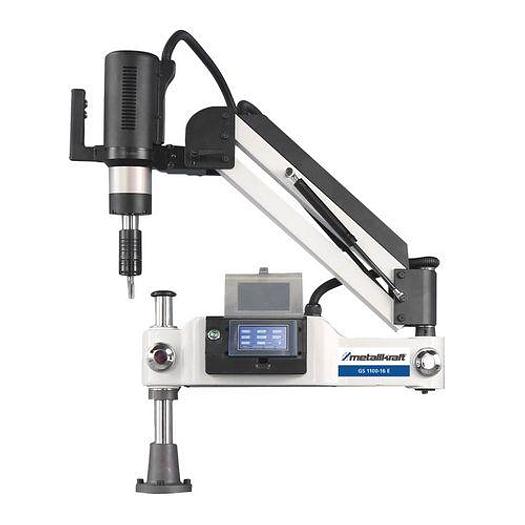

16E tapping Arm

16E tapping Arm

Contact us for price

Location:Blackburn, United Kingdom

orCall +44 1706 876316

Description

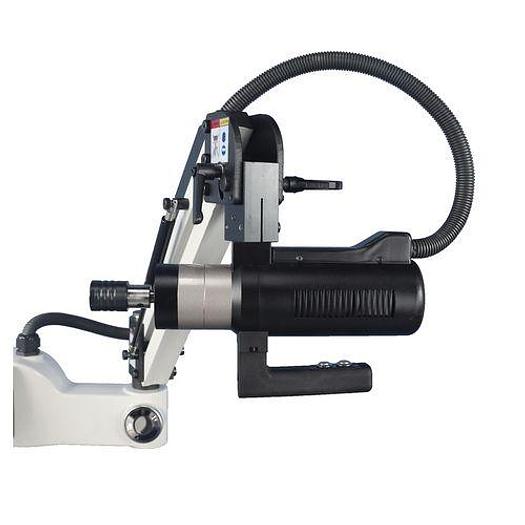

  • Machine head swivels from 0 to 90 degrees
  • Quick-change insert with slip clutch for safe thread cutting without risk of breakage
  • Right-left run selectable on the machine head

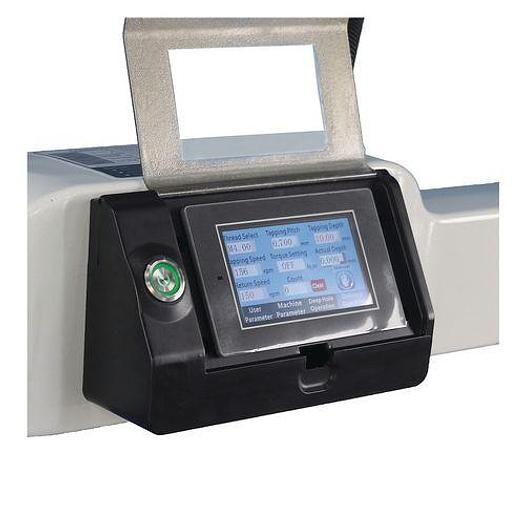

  • Adjustment of thread size, speed, pitch and cutting depth via touch screen on the swivel arm
  • Manual mode: After reaching the set cutting depth, the spindle stops automatically, forward and reverse must be activated manually.
  • Automatic mode: Once the set cutting depth is reached, the machine automatically switches from forward to reverse - Ideal for tapping several blind holes

Tapped holes at 400 N/mm²M3 – M16

Max. speed312 min¯¹

Sound pressure level Lp59 dB(A)

Cutting directionright/link

Drive systemelectrical

Cantilever radius1100 mm


Angle adjustment0 – 90 °VPE1

Dimensions and weights

Length approx.930 mm

Width/depth approx.60 mm

Height approx.520 mm

Weight approx.25 kg

Electrical DataDrive motor output0,6 kWSupply voltage230 VMains frequency50 Hz

Unit: pc(s).

Packaging unit: 1


  • 1 tapping chuck each GT12 M3, M4, M5-6, M8, M10, M12, M14, M16
  • Chassis 900 x 600 x 875 mm


Specifications

ConditionNew
