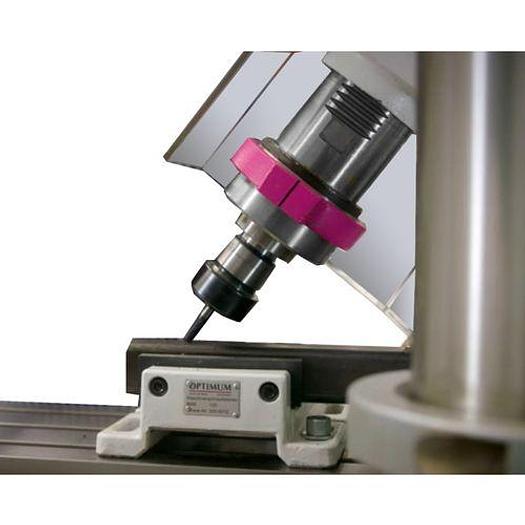

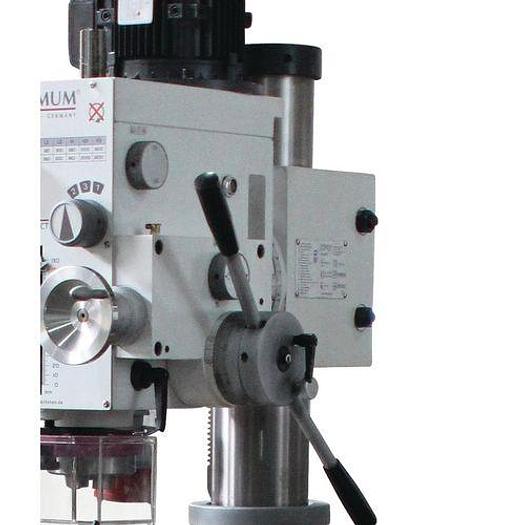

Mach drill OTI 40

Mach drill OTI 40

Contact us for price

Location:Blackburn, United Kingdom

orCall +44 1706 876316

Description

  • Heavy, solid cast version
  • Smooth running due to ground gearwheels running in an oil bath
  • Large speed range from 95 - 3.200 min-1
  • Dual-stage quality industrial electric motor
  • Large dimensioned, solid cross table, precisely surface machined, adjustable via 3 handwheels, with integrated longitudinal dimension scale
  • Adjustable end stops on cross table
  • The height of the gear head and table can be adjusted
  • Table guides can be precisely adjusted via adjustable wedge strips
  • Massive, precisely surface-treated base plate; can be used as work surface for particularly high workpieces by swivelling the cross table away
  • Right/left rotation
  • Drill depth stop
  • Thread cutting function
  • Automatic quill feed

Draw-in rodM 16

VPE1

Dimensions and weights

Column diameter115 mm

Length approx.1060 mm

Width/depth approx.745 mm

Height approx.2090 mm

Weight approx.370 kg

Drilling performanceDrilling performance steel (S235JR)32 mm

Continuous drilling performance steel (S235JR)25 mm

Thread tapping steel (S235JR)M 16Max.

shaft milling cutter size25 mm

Max. sensor head size76 mm

Drilling tableWorkspace length730 mm

Workspace width210 mm


Load bearing capacity50 kgMax.

distance spindle - drilling table600 mm

Electrical DataDrive motor output1.1 / 1.5 kW

Supply voltage400 VMains frequency50 Hz

Machine baseMax. distance spindle - machine base1180 mm

Work area length495 mm

Work area width375 mm

Machine base T-groove size14 mm

Machine base T-groove number2

Machine base T-groove spacing230 mm

Length495 mm

Width375 mm

Speed rangeSpeed range95 – 3200 min¯¹

Number of gears2 x 6 Steps

SpindleQuill stroke120 mm

Quill diameter75 mm

Spindle chuckMT 4

Reach280 mm

Drilling head rotation360 °

Drilling head angle45 °

Quill feedautomaticQuill feed speed0.1 / 0.18 / 0.26 mm/rev

Height adjustment260 mm

TravelDrilling head travel (horizontal)480 mmY axis manual180 mmBoom lift stroke (vertical)560 mm

Specifications

ConditionNew
