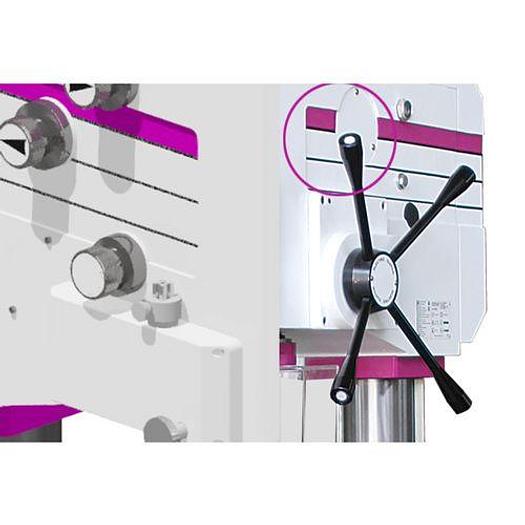

Mach drill OPTI DH35G

Mach drill OPTI DH35G

Contact us for price

Location:Blackburn, United Kingdom

orCall +44 1706 876316

Description

  • Dirt and water resistant, easy to clean membrane keypad
  • Electronics 24V DC
  • Depth stop
  • Electrical quill feed
  • Low-maintenance, running in closed oil bath gearbox
  • Threading attachment
  • Machine light integrated in the drill head
  • Main switch
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Large dimensioned, solid drill table, precisely worked with diagonal T-slots and all-round cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
  • Coolant device integrated with coolant reservoir in the base plate
  • Chip filter cleans the coolant from coarse components
  • Extremely stable, thick-walled cast-iron column for high power consumption
  • Solid base plate with parallel T-slots, precision surface finish
  • Optional foot switch for switching between right-left rotation and thread cutting (article no. 3050032) available


Dimensions and weights

Column diameter115 mm

Length approx.860 mm

Width/depth approx.474 mm

Height approx.2175 mm

Weight approx.350 kg

Drilling performance

Drilling performance steel (S235JR)35 mm

Continuous drilling performance steel (S235JR)26 mm

Thread tapping steel (S235JR)M 24

Drilling table

Workspace length400 mm

Workspace width420 mm

T-groove typediagonalT-groove size14 mmT-groove number2

Load bearing capacity200 kgMax.

distance spindle -

drilling table800 mmMin.

distance spindle - drilling table65 mm

Electrical DataDrive

motor output1,5 / 2,2 kW

Supply voltage400 V

Mains frequency50 Hz

Machine baseMax. distance spindle - machine base1217 mm

Work area length420 mm

Work area width395 mm

Machine base T-groove size14 mm

Machine base T-groove number2

Machine base T-groove spacing150 mm

Motor(s)Coolant pump drive motor output40 W

Speed rangeSpeed range75 – 2000 min¯¹

Number of gears8 Steps

SpindleQuill stroke125 mm

Spindle chuckMT 4

Reach285 mm

Quill feed speed0.05 – 0.15 mm/rev


Quill feed gears3 Steps


Specifications

ConditionNew
