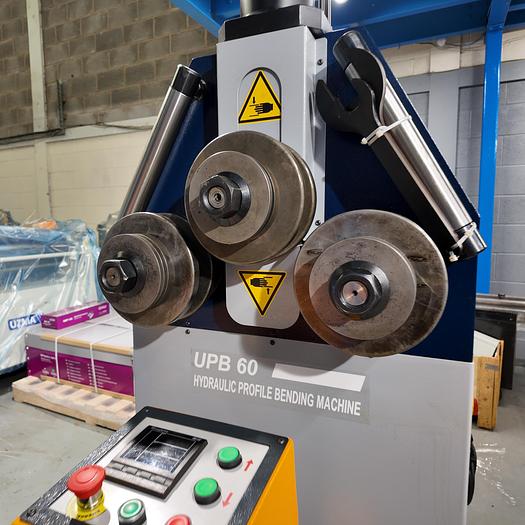

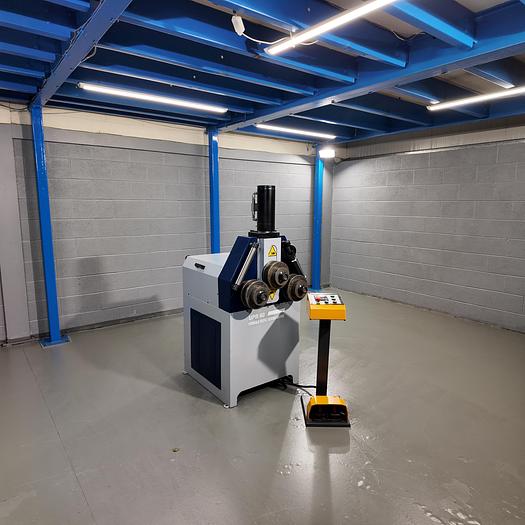

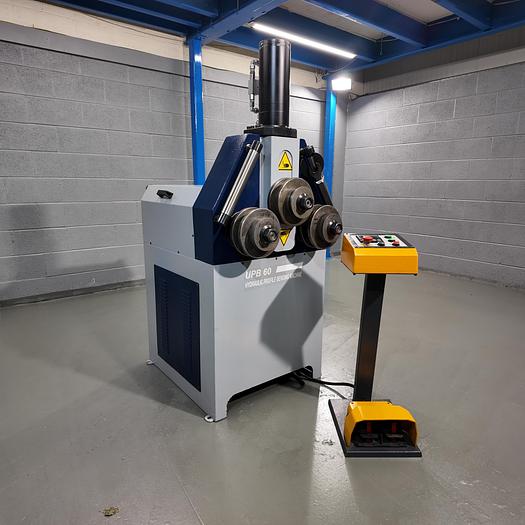

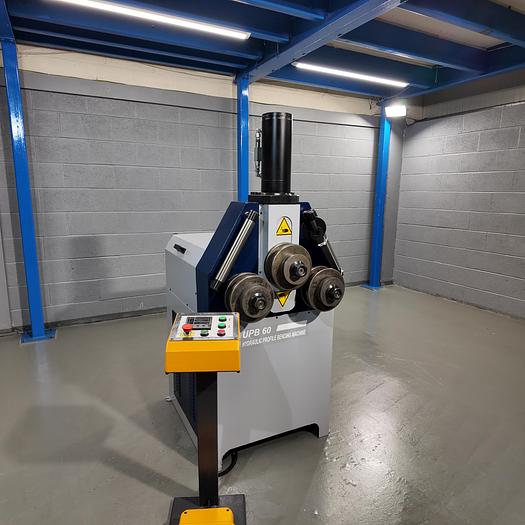

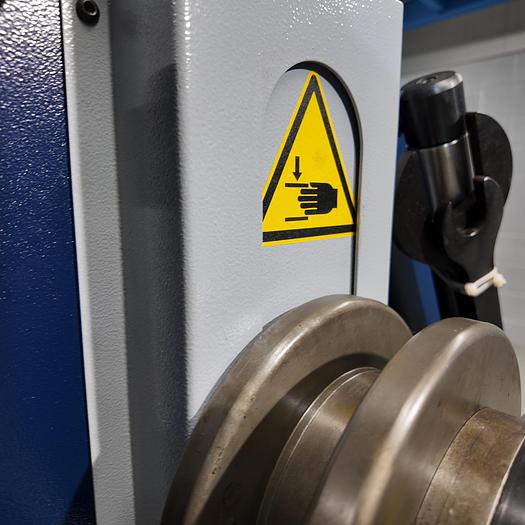

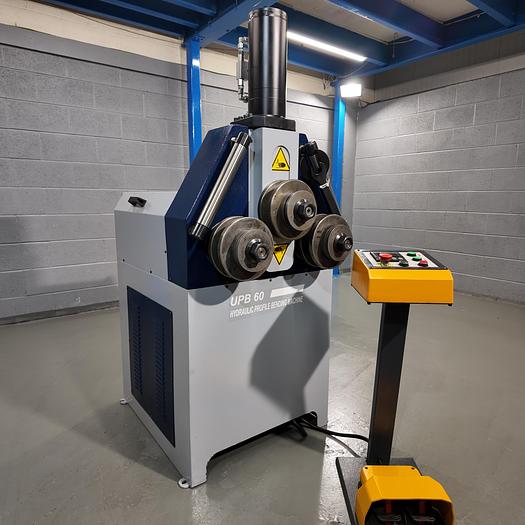

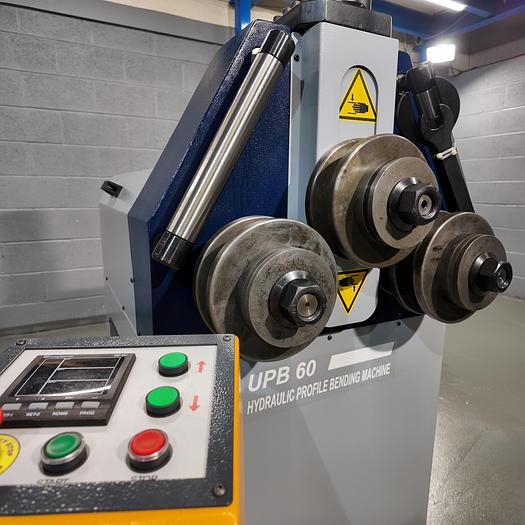

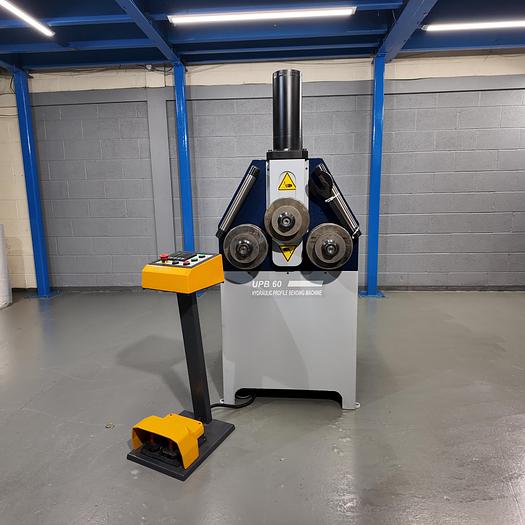

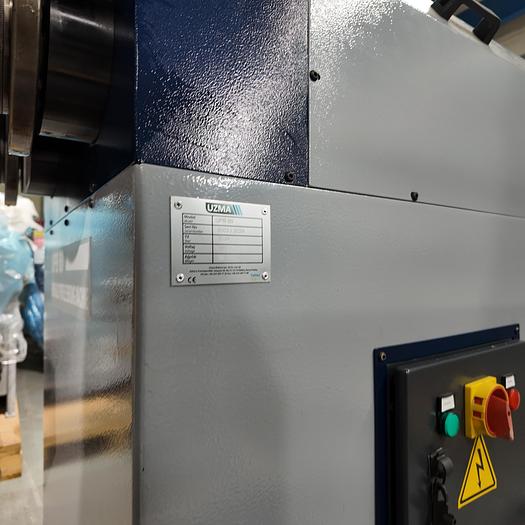

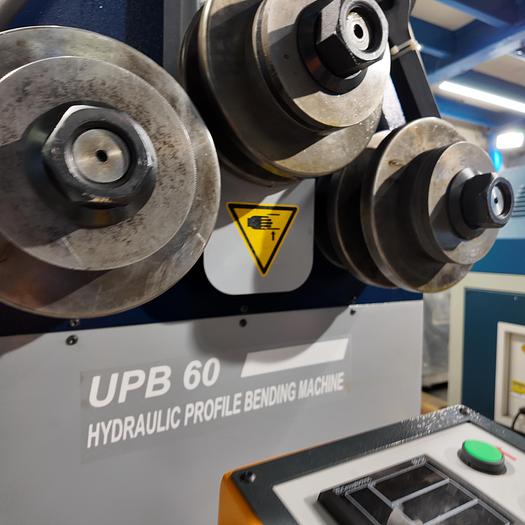

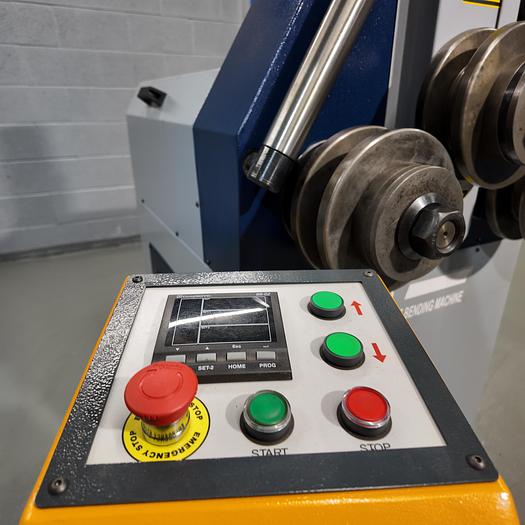

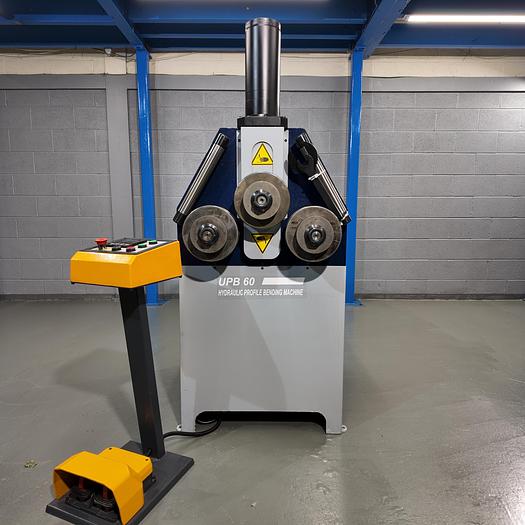

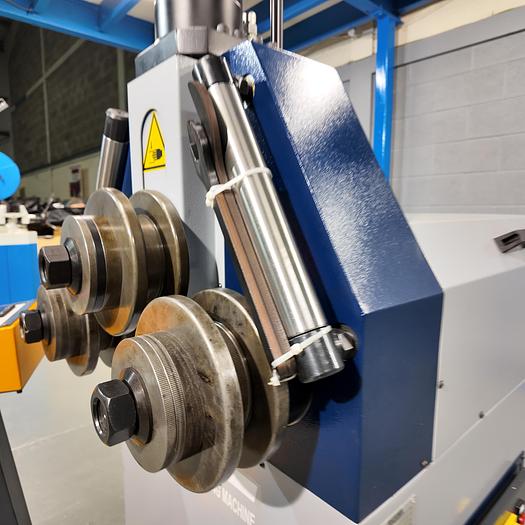

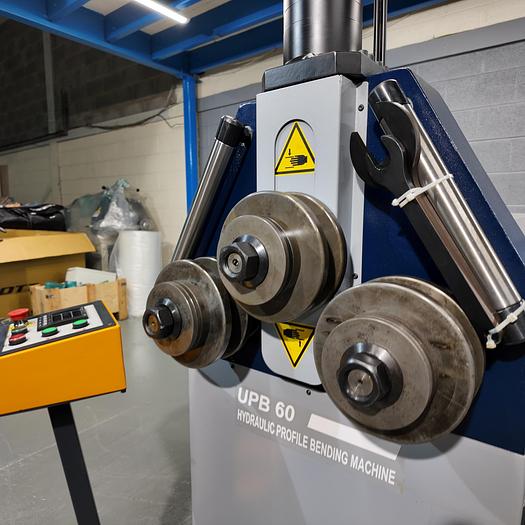

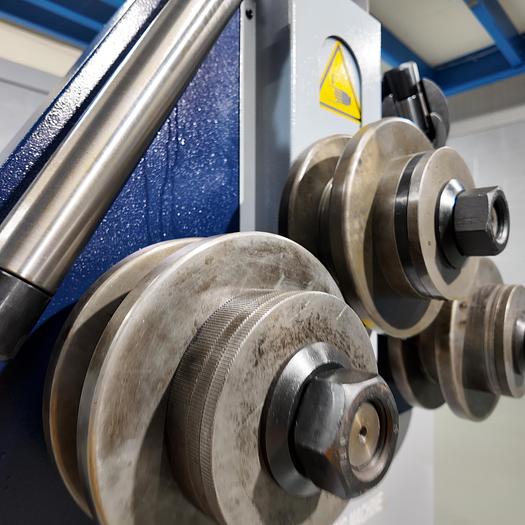

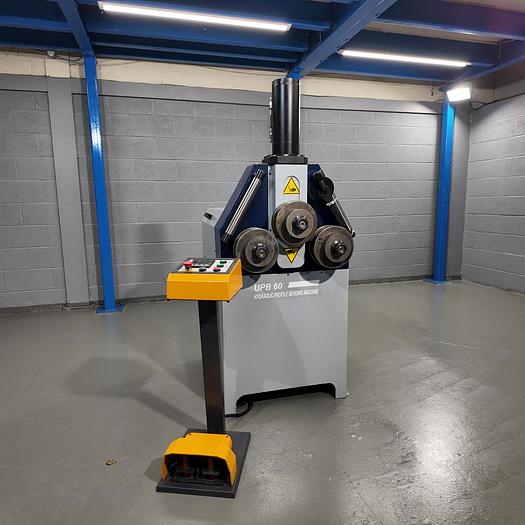

UZMA 60 MHB section roller

UZMA 60 MHB section roller

Contact us for price

Location:Blackburn, United Kingdom

Description

STANDARD FEATURES

  • steel body
  • Reducer driven gear system
  • Upper shaft return idler motion
  • Upper shaft moves up and down hydraulically
  • Lower shafts are fixed and gear driven

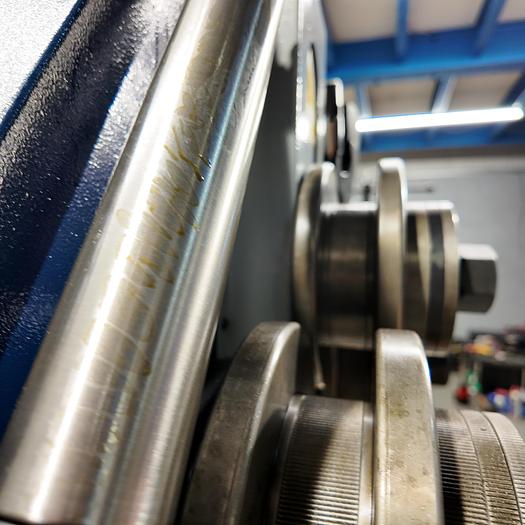

  • Roller shafts and tooling are 1050 quality steel
  • All shafts and tooling are hardened and ground
  • Flat and box profiles can be bent with standard rollers

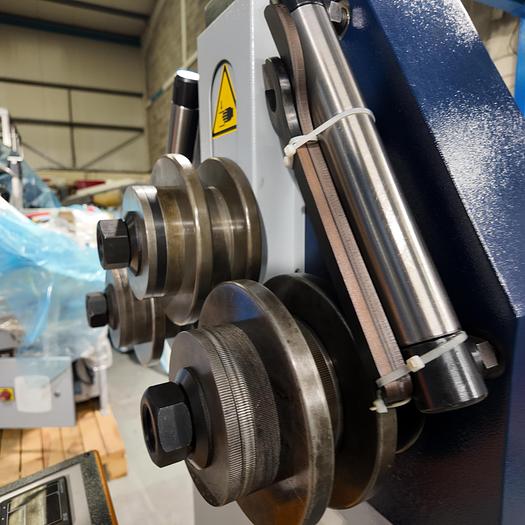

  • Standard rolls are made of collars of different sizes.
  • Adjustable side supports
  • Horizontal and vertical working possibility

English user manual

  • CE certified

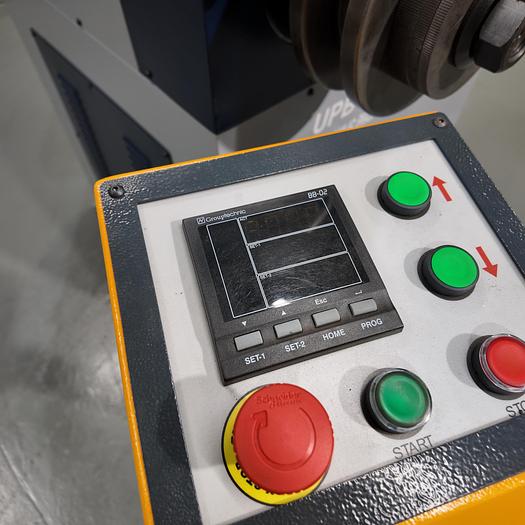

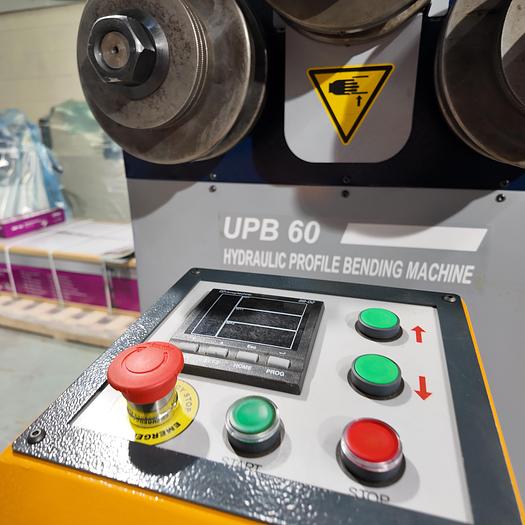

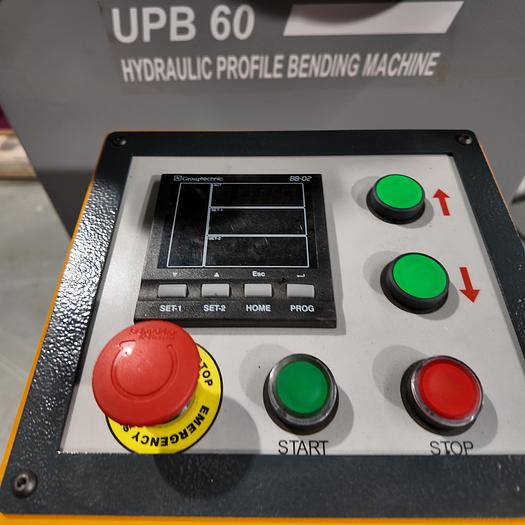

  • Digital Readout
  • Forward and Reverse


Specifications

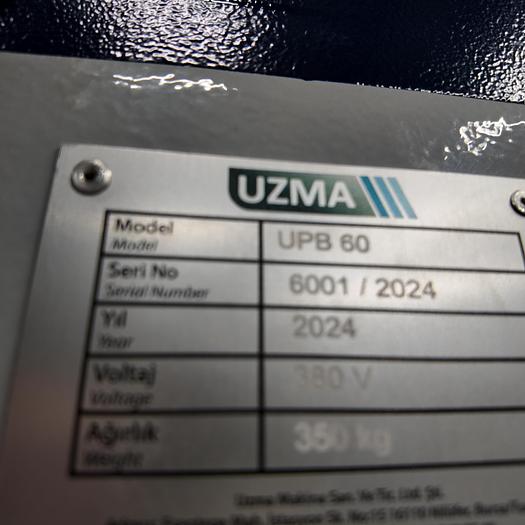

ManufacturerUZMA
ModelMHB60
ConditionNew
Motor power (kw)2.2
Top Roll60mm
Weight kg.900
box capacity70mm x 3mm
Flat on Edge80mm x 10mm
Rectangles80mm x 40mm
Tube capacity76mm x 2mm
Flat easyway120mm x 15mm
