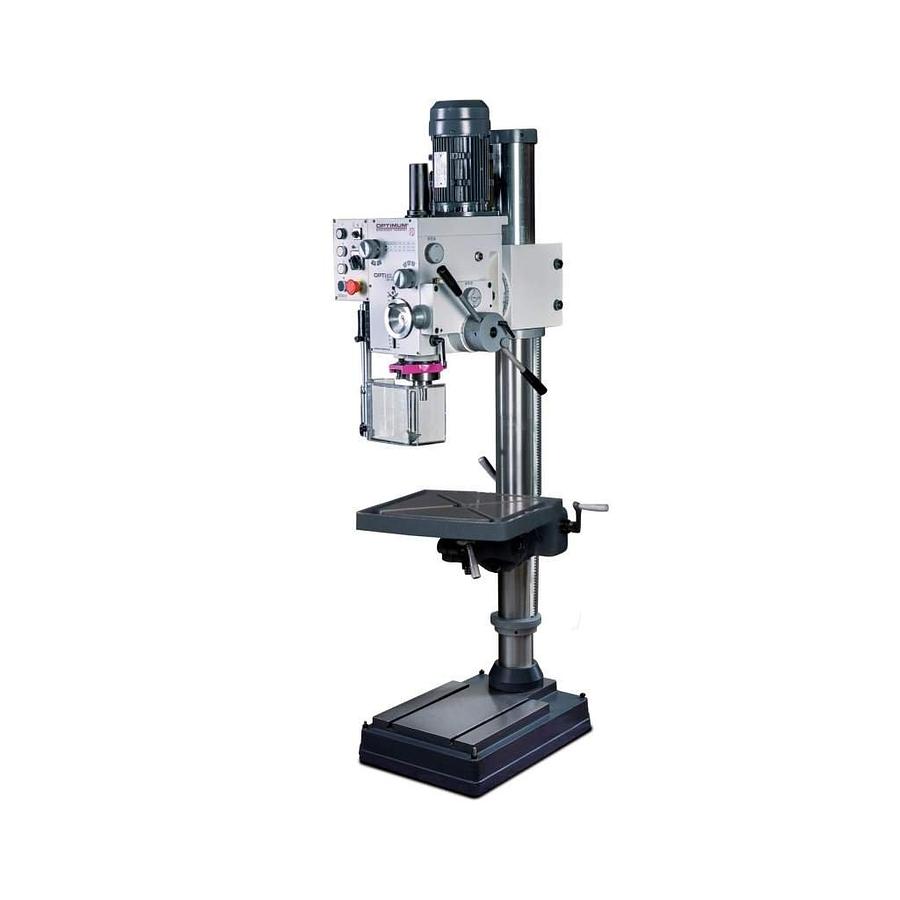

Opti DRILL 40 GP GEARED HEAD DRILLING MACHINE

• Heavy, solid cast construction
• Smooth running due to polished gear wheels running in oil bath
• Two-stage industrial electric motor
• Tapping function
• Gear head and table can be adjusted in height
• Large speed range of 95 - 3,200 rpm through 12 switchable speeds
• Large dimensioned, solid drilling table, precisely worked with diagonal T-slots and circumferential cooling water channel; strongly ribbed on the reverse and double clamped
• Depth stop
• Height-adjustable feed guard with micro-switch for the utmost protection of the user
• Coupling for switching from manual coarse feed to manual fine feed
• Thick-walled cast-iron column for high power absorption and stability
• Solid precision surface machined base plate; by pivoting away the drill table can be used as a work surface for particularly high workpieces

OPTIdrill DH 40GP

• Automatic quill feed: The feed is automatically switched off after reaching the set drilling depth and is turned back to its initial position by the spring force of the return spring

 Dimensions and weights

Length approx.590 mm

Width/depth approx.700 mm

Height approx.2050 mmW

eight approx.335 kg

Drilling performanceDrilling

performance steel (S235JR)32 mm

Continuous drilling performance steel (S235JR)25 mm

Thread tapping steel (S235JR)M 16

Drilling tableWorkspace length500 mm

Workspace width460 mmT-

groove typediagonal

T-groove size14 mm

T-groove number2

Load bearing capacity50 kg

Electrical DataDrive motor output1.1 / 1.5 kWSupply

voltage400 VMains frequency50 Hz

Speed rangeSpeed range95 3200 min¯¹

Number of gears2 x 6 Steps

SpindleQuill stroke120 mmQuill stroke (automatic mode) approx.115 mmSpindle chuckMT 4Reach280 mmDrilling head rotation45 °Drilling head angle360 °Quill feedautomaticQuill feed speed0.1 / 0.18 / 0.26 mm/revQuill feed gears3 StepsHeight adjustment265 mm

VPE1
