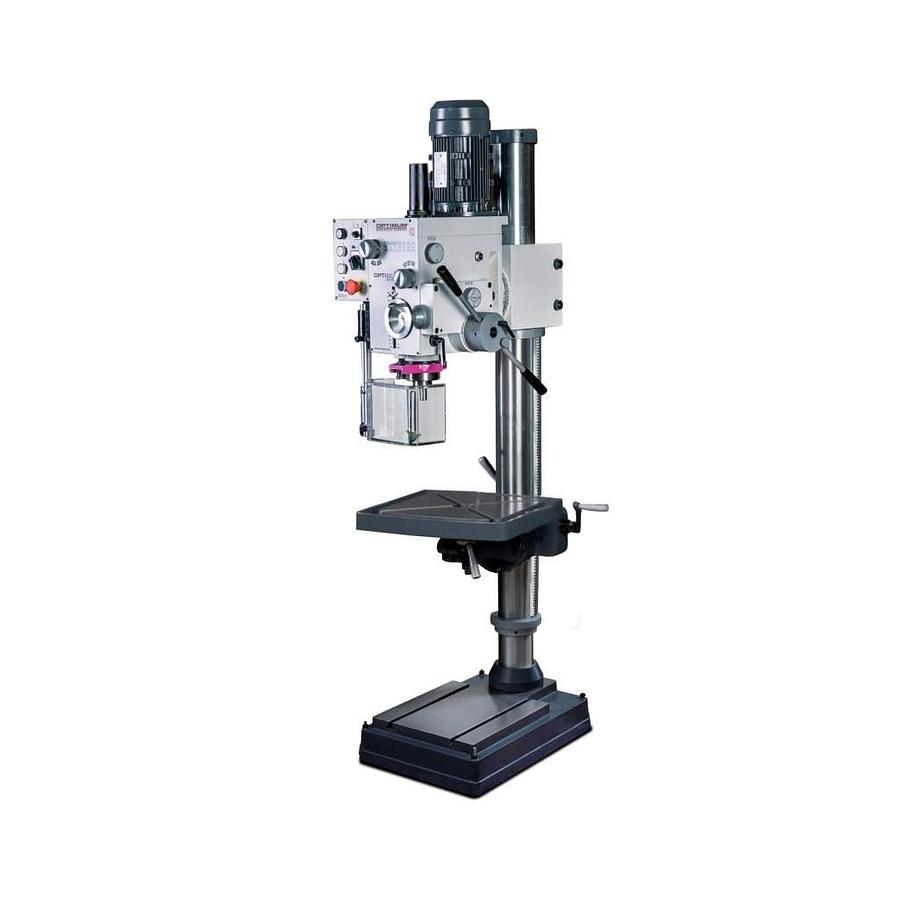

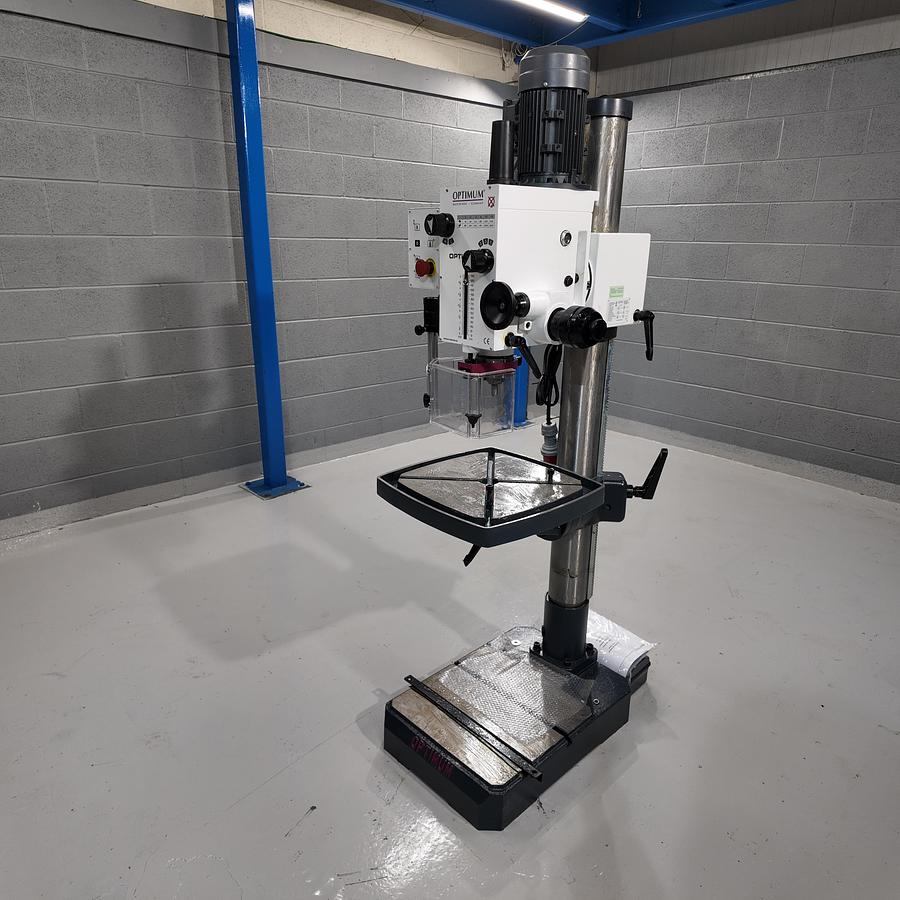

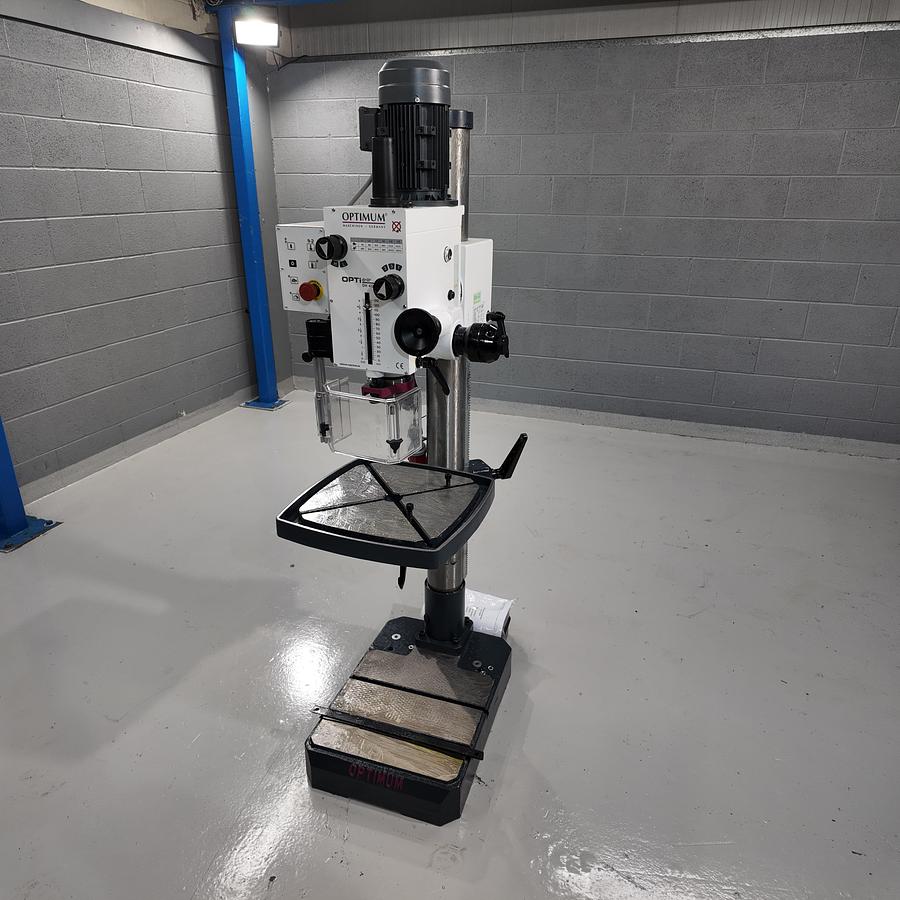

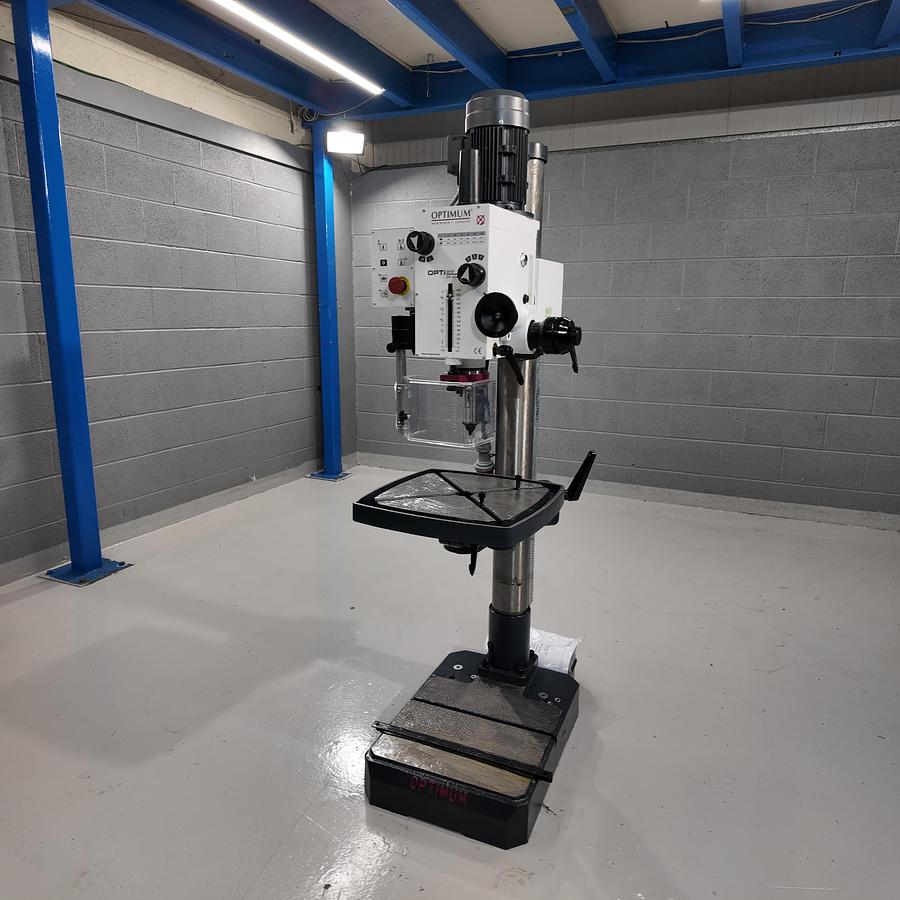

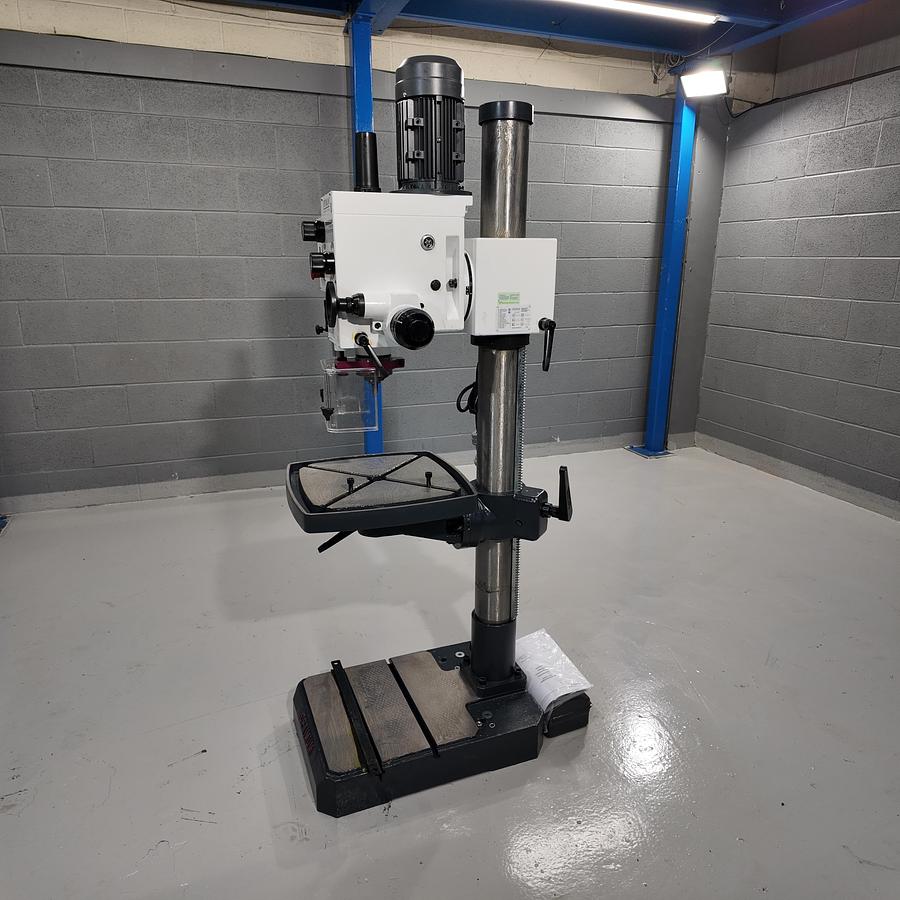

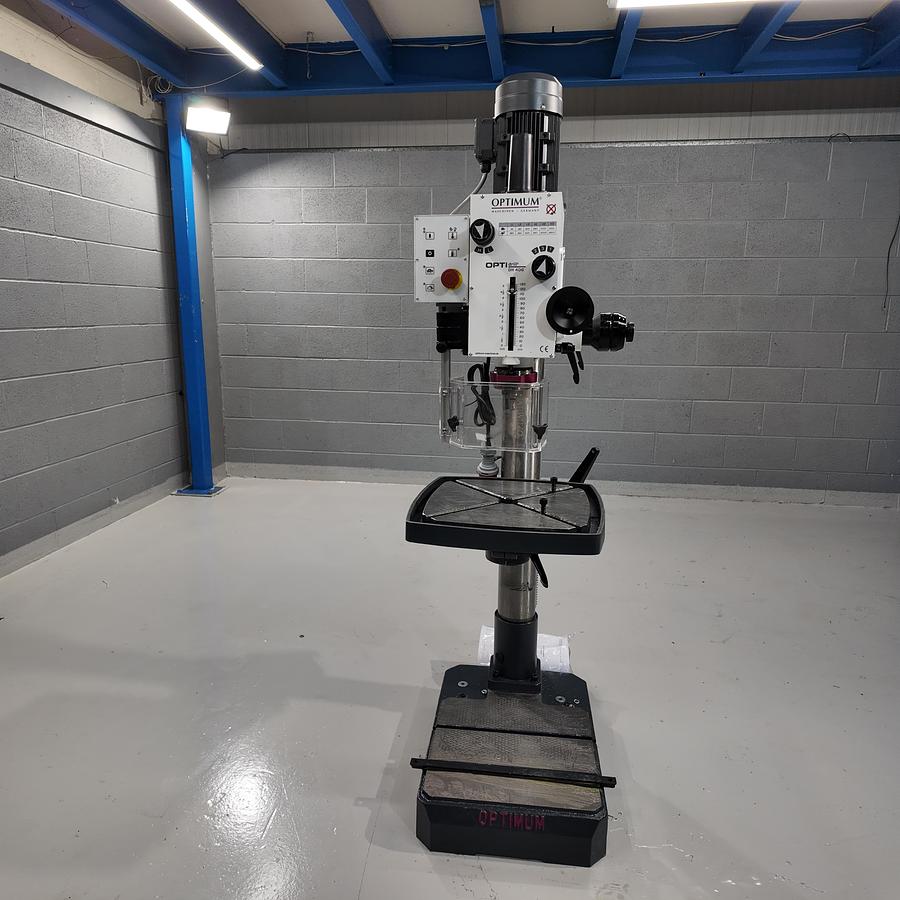

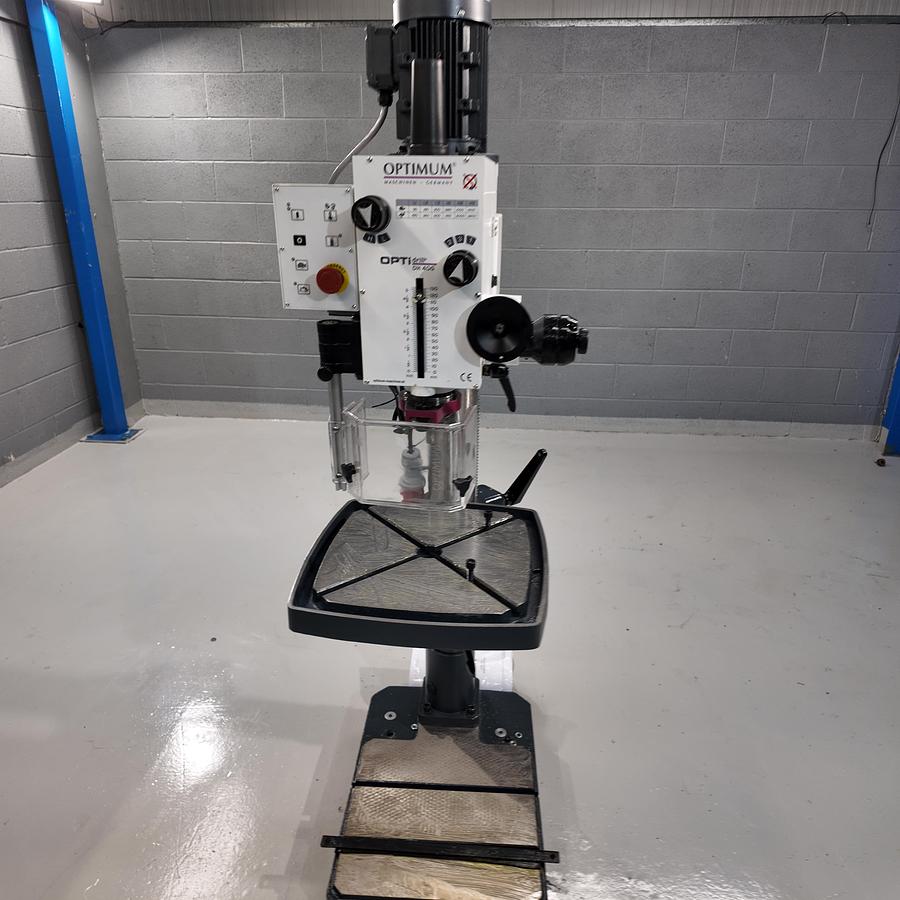

OPTI 40G geared head drilling machine
OPTI 40G geared head drilling machine
Contact us for price
Location:Blackburn, United Kingdom
or
Call +44 1706 876316
Description
- Heavy, solid cast construction
- Smooth running due to polished gear wheels running in oil bath
- Two-stage industrial electric motor
- Tapping function

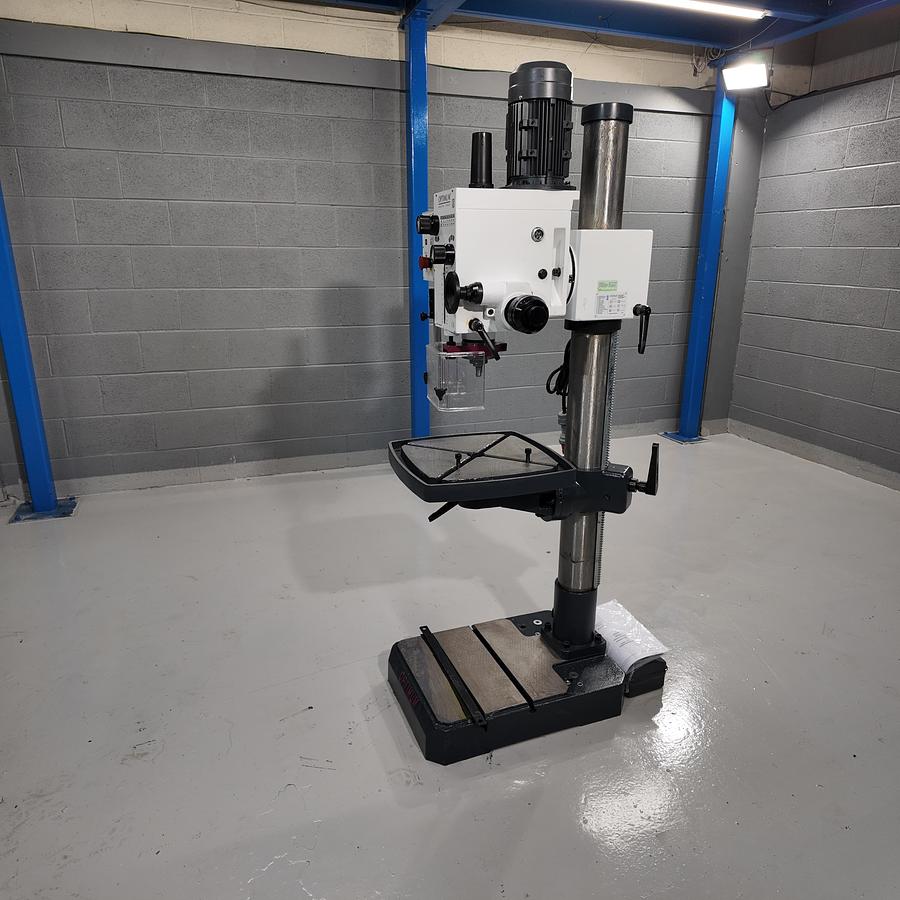

- Gear head and table can be adjusted in height

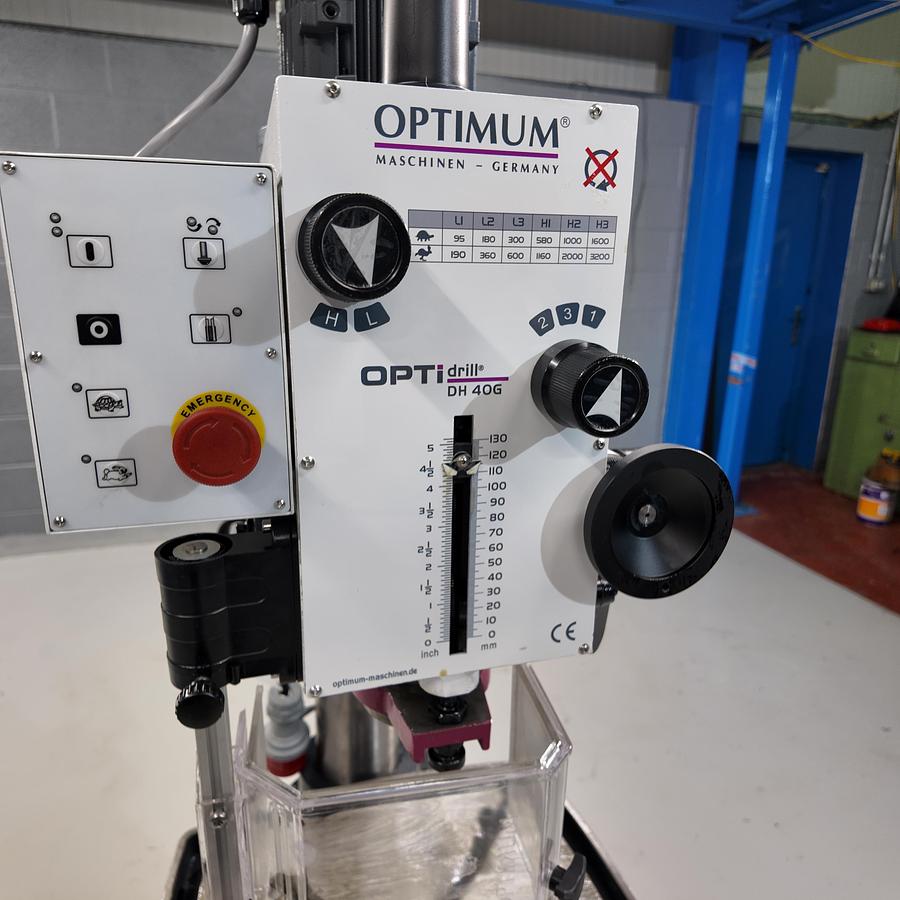

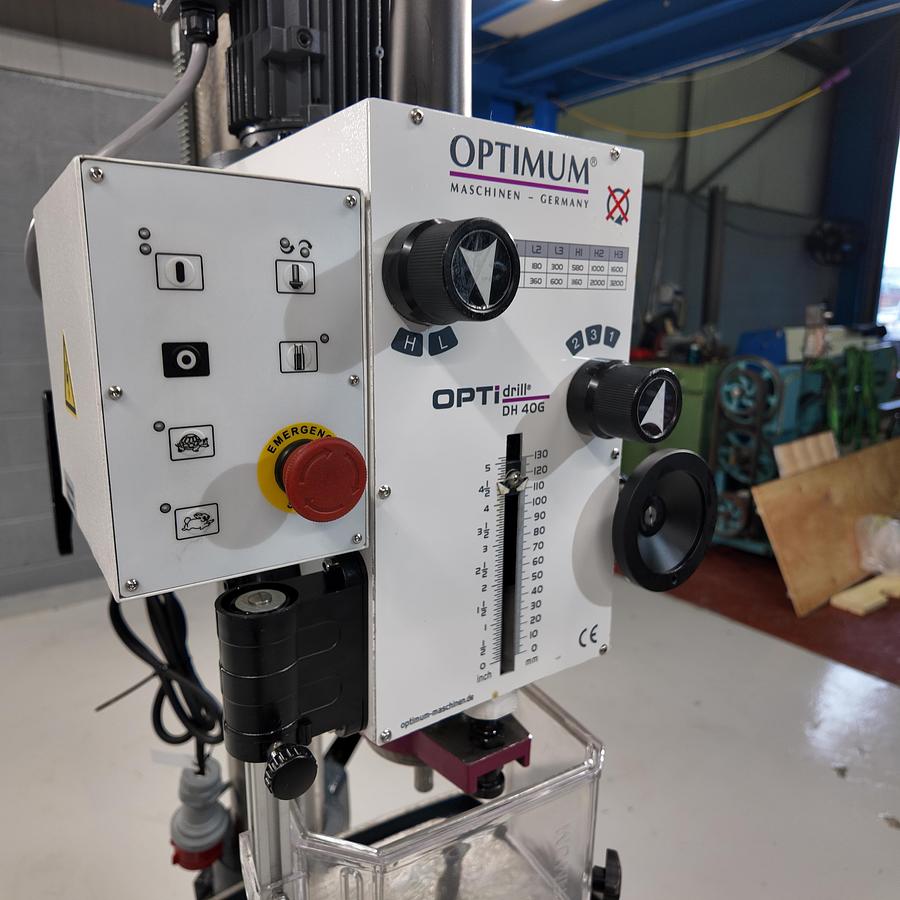

- Large speed range of 95 - 3,200 rpm through 12 switchable speeds
- Large dimensioned, solid drilling table, precisely worked with diagonal T-slots and circumferential cooling water channel; strongly ribbed on the reverse and double clamped
- Depth stop

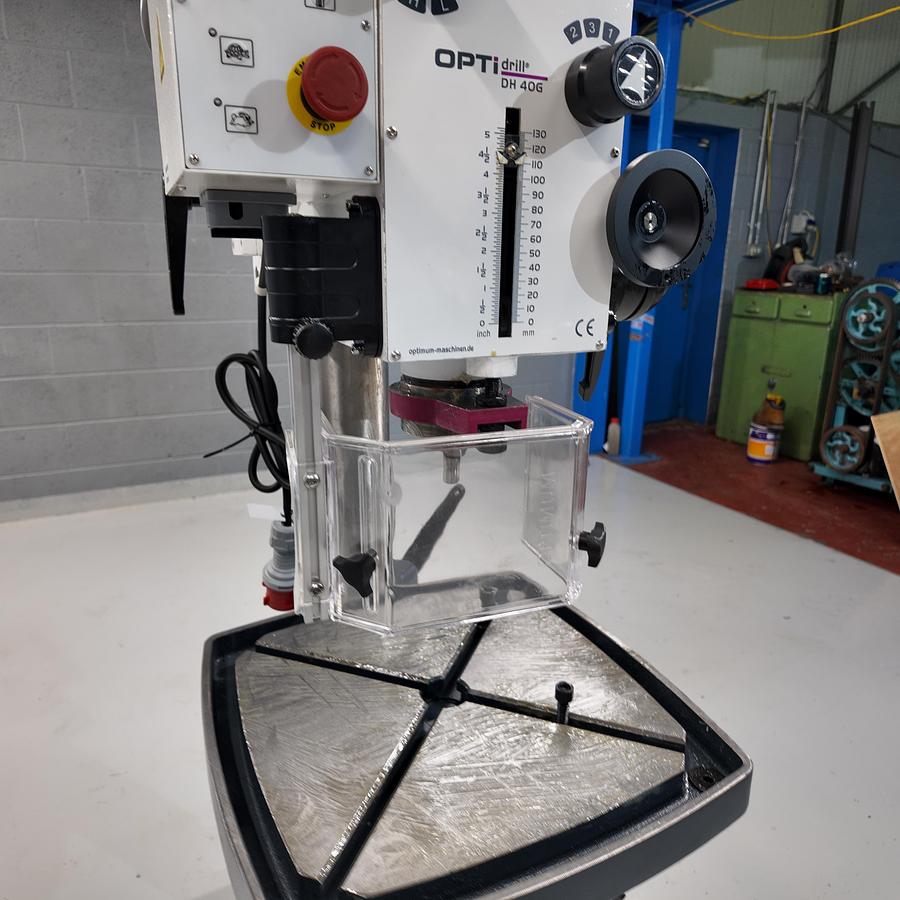

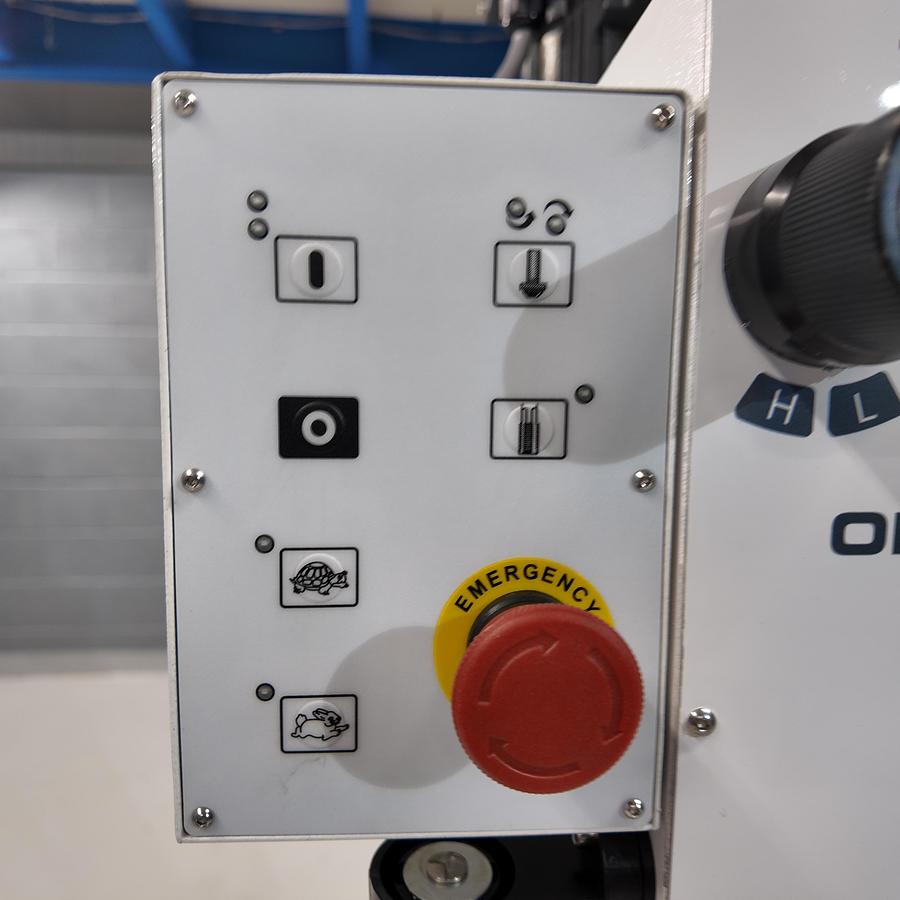

- Height-adjustable feed guard with micro-switch for the utmost protection of the user
- Coupling for switching from manual coarse feed to manual fine feed
- Thick-walled cast-iron column for high power absorption and stability

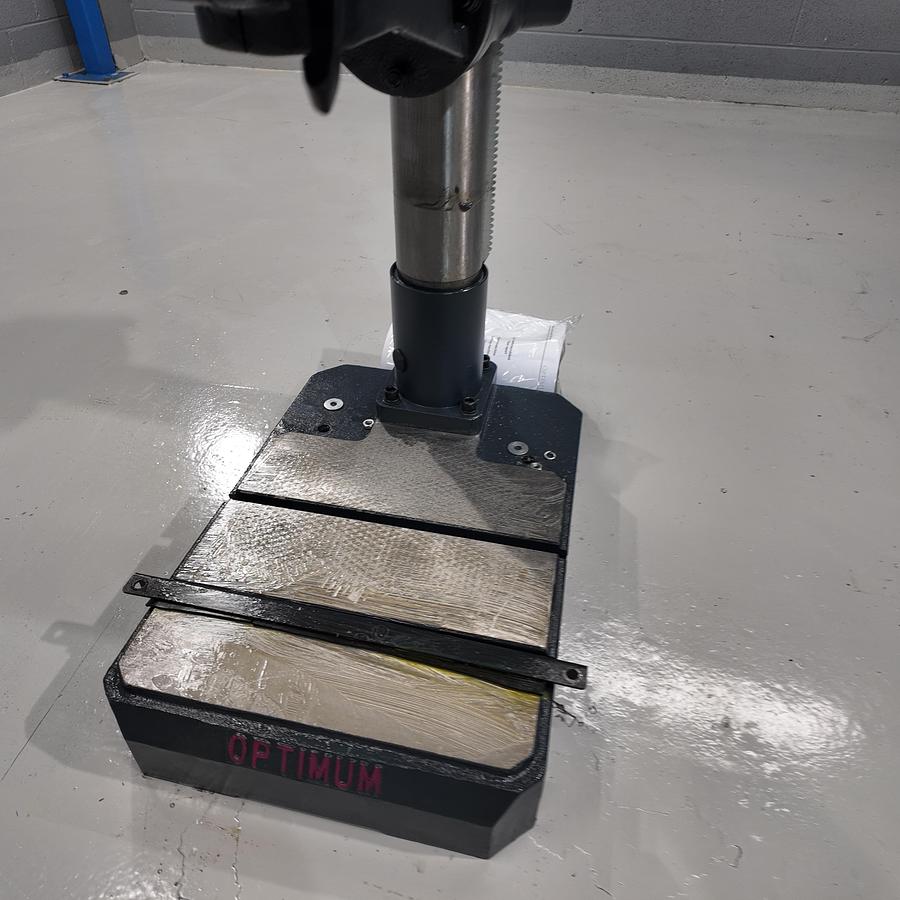

- Solid precision surface machined base plate; by pivoting away the drill table can be used as a work surface for particularly high workpieces
- Dimensions and weights
- Length approx.590 mm
- Width/depth approx.700 mm
- Height approx.2050 mm
- Weight approx.320 kg
- Drilling performanceDrilling performance steel (S235JR)
- 32 mmContinuous drilling performance steel (S235JR)25 mm
- Thread tapping steel (S235JR)M 16
- Drilling tableWorkspace length500 mm
- Workspace width460 mm
- T-groove size14 mm
- Load bearing capacity50 kg
- Electrical DataDrive motor output1.1 / 1.5 kW
- Supply voltage400 VMains frequency50 Hz
- Speed rangeSpeed range95 3200 min¯¹
- Number of gears2 x 6 Steps
- SpindleQuill stroke120 mm
- Spindle chuck
- MT 4Reach280 mm
- Drilling head rotation45 °Drilling head angle360 °
- Quill feedmanual
- Height adjustment265 mm
- VPE1
Specifications
| Model | 40G |
| Condition | New |
