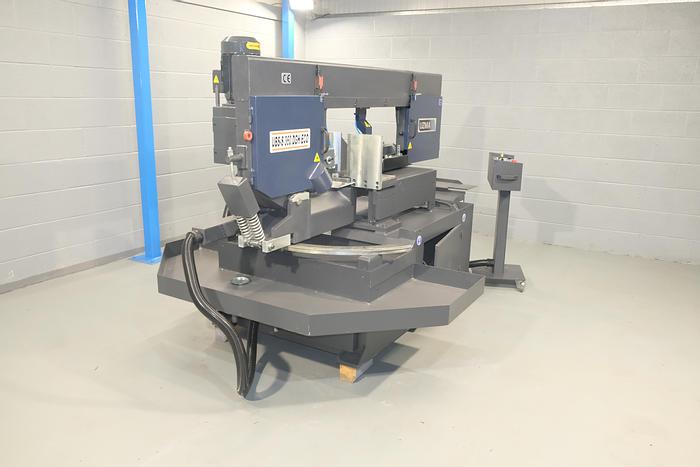

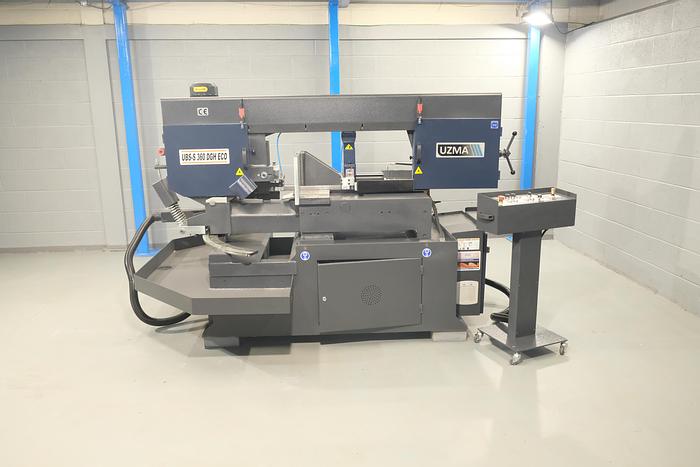

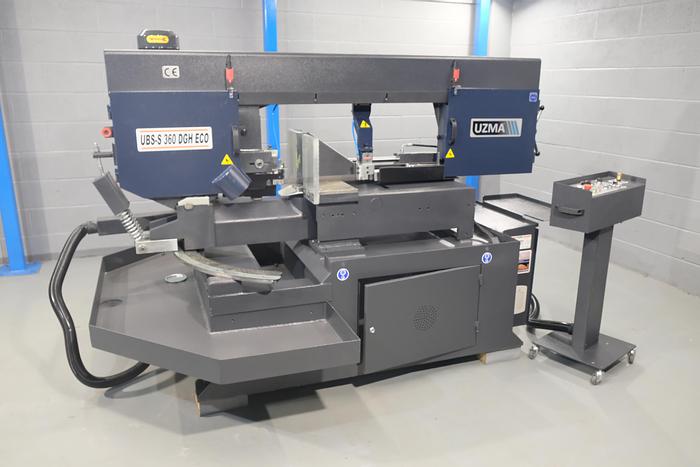

UZMA 360 DGH ECO semi automatic Double Mitre Bandsaw

UZMA 360 DGH ECO semi automatic Double Mitre Bandsaw

Contact us for price

Location:Blackburn, United Kingdom

orCall +44 1706 876316

Description

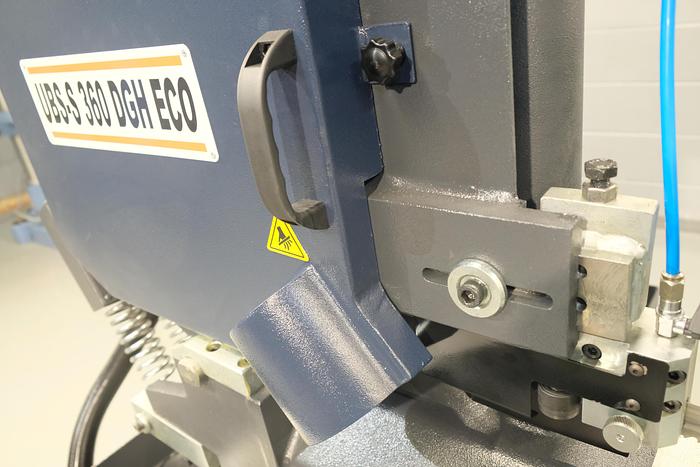

UZMA 360 ECO DGH semi automatic

Double Mitre Bandsaw Large capacity

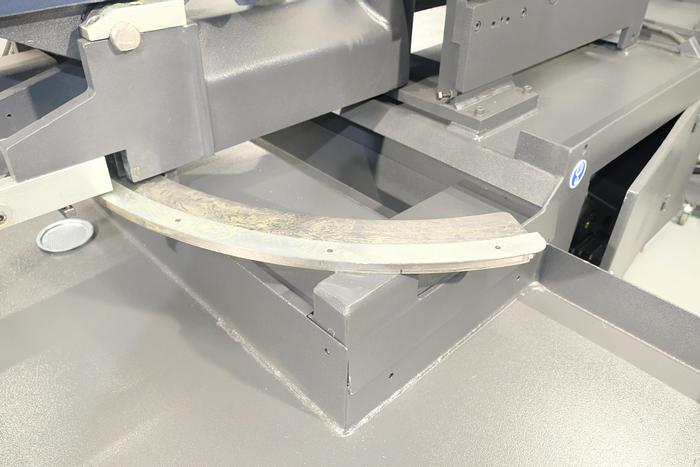

Head swivels double Mitre 60 deg both directions


Product Description

Machine description :

semi-automatic double miter for cutting profiles and

 Solid material in steel and non-ferrous material and excellent price-performance ratio

robust constructed monoblock saw frame

manually swiveling saw frame with hydraulic clamping for optimal

 Double Mitre

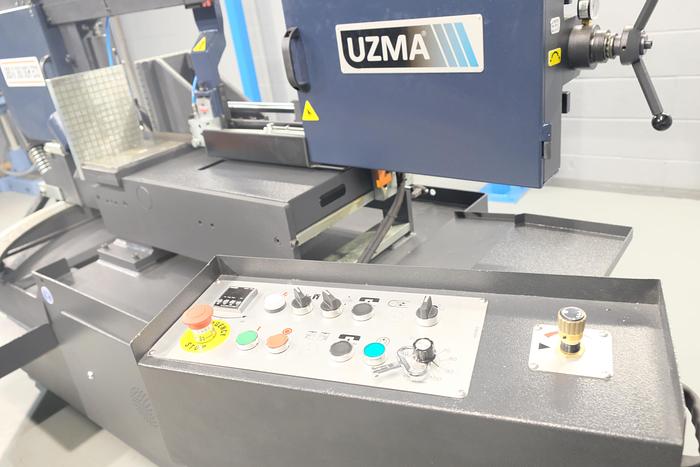

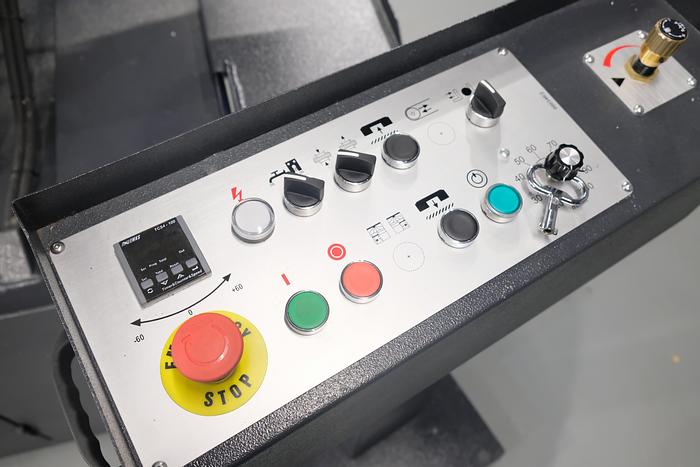

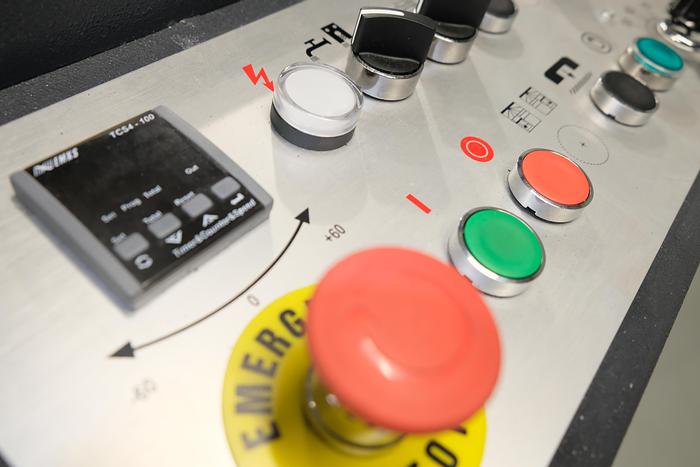

• miter on mobile control panel digitally readable

• automatic saw frame raising on the cut end

 20-100 m / min BMSY DGH 360 /440 DGH

• hydraulic-mechanical belt tension

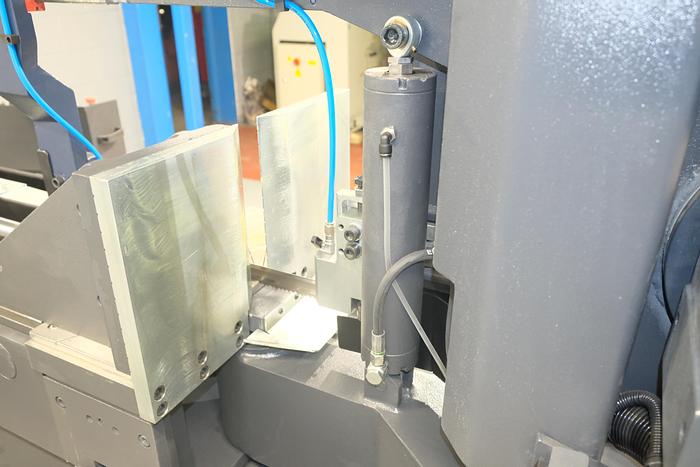

• tape guide with hard metal pads sheets and rolls

• thermal overload protection and no-volt release

• Automatic shut-off after cut end

• automatic belt break protection Driven


Specifications

ManufacturerUZMA
Model360 DGH
ConditionNew
Round capacity360mm
Capacity at 45°360mm left and right
Flat Capacity510 x 360
Flat capacity at 45 deg390 x 360 left and right
Flat cutting 60 deg200mm x 360mm
Blade speedm/min. 20-100
Blade size (lxwxt)4800x34x1,1
Motor3kw
MitreHead swivels double Mitre 60 deg both directions
Weight1450 kg
length2750mm
width1220mm
height1870
